Lucas II 84 LED Street Light

Home > Products > Lighting Fixture > Architectural Lighting >Street Lights

MOQ ： piece

Lead Time ： Days

Inquiry Start Order

Seller Support : Trade Authenticity Guaranteed & Accepting

Payment : L/C,T/T

Departure Port : Tianjin

Product details

Supply Ability

Warranty(Year)：1 Year

Packaging & Delivery

Length：68.6 cmWidth：33.3 cm
Height：10.05 cm
Packaging：1 piece

Product Specifications

Product Description

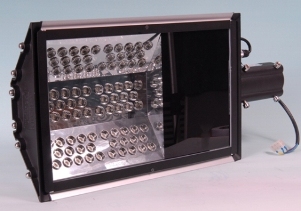

Lucas II 84 Street Light

A-6800-084-CR2

Lucas II 84 is the mid size Lamp head that U-Tron produce today. This
lamp heads can produce over 10,000 lumen to satisfy most of the street
lighting needs. We recommend by changing the LED chips from Q2, Q3, Q4
or Q5 to achieve different lumen out put with out increasing the power
consumption or the weight of the lamp head. Since many countries will
pass laws eliminating non energy efficient lamps in the near future,
Lucas II 84 will have the potential to be retrofitted to existing street
lights needs.

L II 84 Technical Specifications

LED Type	Cree R2
Number of LED	84
Total Power Consumption	110 watts
Power Rating:	220V 50Hz
Temperature rating:	-40 oC to 45 oC
LED Initial Flux:	9,576 lm
Lights Dimension	(L)686 x(H)100.5x(W)333mm
IP Rating:	IP 65
Warranty on Workmanship	36 Months
Guarantee on LED < 50% loss(Which ever comes first)	60 Months or 50,000 Hrs

L II 84 Packaging Information

Net Weight:	11.0 Kg
Gross Weight	13.77 Kg
Carton Size (1 Pc/carton):	760x400x200mm

Container	Number of Pieces
20 foot	410
40 foot	850
40 foot HQ	1,030

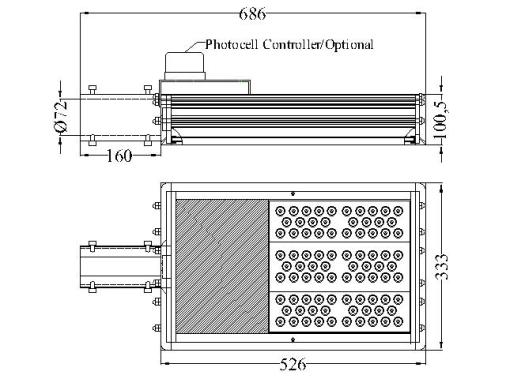

L II 84 Engineering Drawing

Lamp Post Installation

There are total of six M10 bolts are provided with each lamp. The top
first bolt is used for safety purpose. Lucas Lamps are designed for
accommodating light post standards used around the world by most
countries. However, there are variations and our lamps may not fit in
some Lamp Post used in some countries. Please contact us for making
special modification if desired. In general we support End of Post
diameter from 65 mm to 72 mm. (2 inch to 2 ? inches).

Use the supplied M10 hex tool to secure all other 5 bolts to the pole
tight and secured except the one top bolt which must go through the
pole for safety reasons.

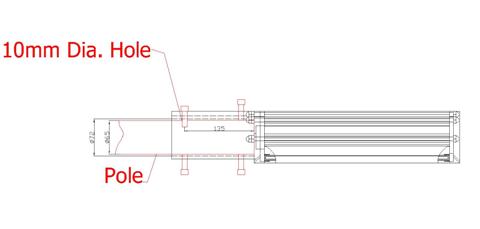

Safety Nut Installation

On the top side of the Lamp Post about 135mm from the end of pole we
recommend you drill a 10mm diameter hole. This is to secure the lamp
from falling off or sliding and twisting due to wind or other natural
disasters.

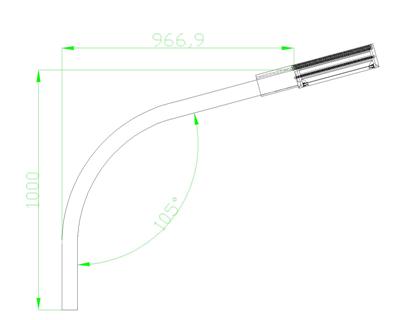

Lamp Post (Light Pole) Recomendations

Lucas Lights are designed for low height lamp posts. We recommend
the lamp post to be upward tilted about 105° to obtain best results. See
Figure above.

Recommended Height and Pole-to-Pole Distance

Model #	Lucas I 30	Lucas I 42	Lucas II 60	Lucas II 84
Pole Height	4-5 Meters	5-6 Meters	6-7 Meters	7-8 Meters
Pole-to-Pole distance	12 - 15 Meters	15 - 20 Meters	20 - 25 Meters	25 - 30 Meters
